HD Adjustable 170º Car Rear View Reverse Backup Camera

Bullet Point

• Convert any reversing camera with a standard phono/RCA connector

• Can be changed to be a front view or a side view camera via 2 control loop

• Professional exterior waterproof car rear view camera

• Small compact size

• Low power consumption

• Low maintenance

• Super night vision function

• Easy to install and operate

• Perfectly solve the issue of bad car rear view effect.

• Connects to rear-view camera

• Fit all RCA composite video connections

• Power: DC 12V

• Car Front/Rear View Camera:

• Sensor: PC7440 1/4 Inch Color CMOS

• TV system: NTSC

• Effective pixels:648 X 488pixels

• Scanning System: 2:1 Interlace

• Sync System: Internal

• Resolution: 600 TV lines

• Lens Angle: 2.8mm/120°- 1.8mm/170°

• Sensor Area: 5.961mm x 4.276mm

• Video Output: 1.0 VP-P,75 OHM

• S/N Ratio: More than 48db

• Water-proof: IP68-IP69

• Minimum Illumination: 0.2Lux/F1.8(0 Lux with LED)

• Current Consumpition: No more 300mA

• Power supply: DC 12V

• Operationg Temperature: -30℃ - 65℃(RH95%Max.)

• Storage Temperature: -40℃- 75℃(RH95%Max.)

• Other Items: Auto matic white balance. Agc and BLC

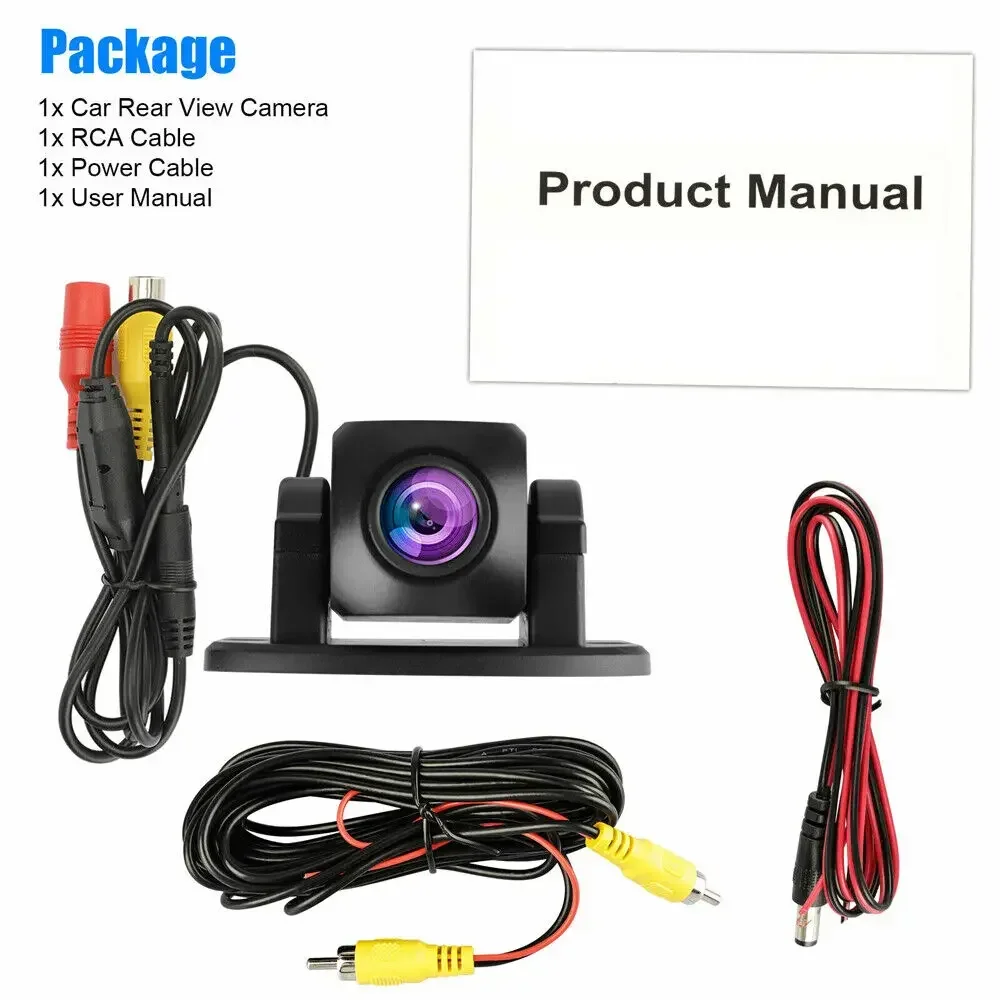

• 1 x Car Camera

• 1 x 6M RCA Video Cable

• 1 x 1M Power Cable

• 1 x User Manual
